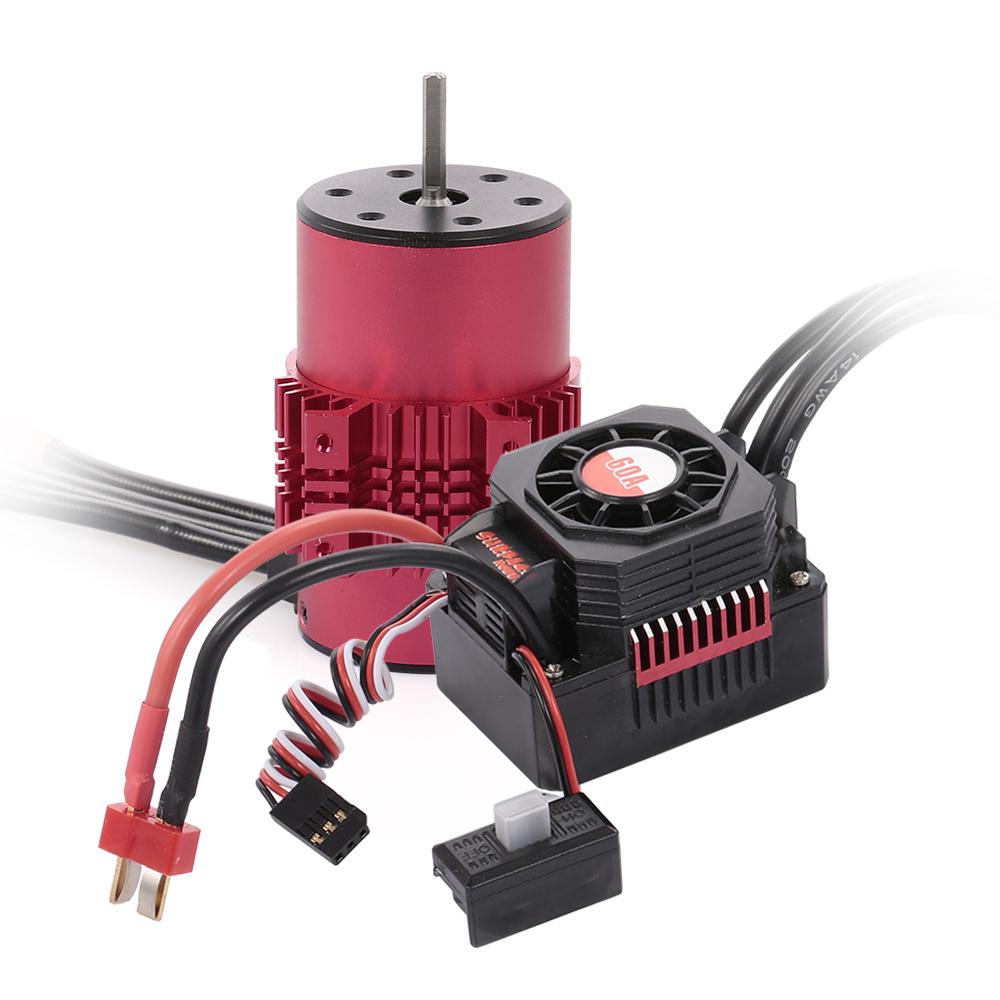

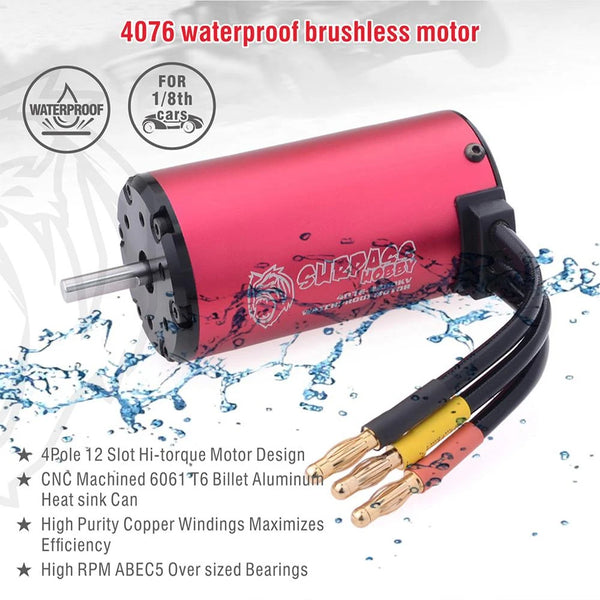

4 Pole 12 Slot Hi-torque Motor Design
High Quality: CNC Machined 6061 T6 Billet Aluminum Heatsink Can, High Purity Copper Windings Maximizes Efficiency, High RPM ABEC5 Oversized Bearings
Universal fit, for 1:10 2S RC car , 3S RC racing, off-road car
Precision balanced rotor,smoothness for best reliability and maximum RPM
Stator - Super Thin (0.35mm) Laminations
Motor Specificaties:
KV(RPM/Volt): 3500KV
Watt: 1200
Max RPM: 50.000
Max voltage: <12V
Max amps: 100A
Rotor poles: 4
Diameter: 35,5 mm
Lengte: 59 mm
As lengte: 17 mm
As Diameter: 5 mm
Aansluiting : 4,0 mm
Weight:218g
ESC Specificaties:
Cont.Current/Burst Current: 80A/480A
Motor Type: Sensorless Brushless Motor
Weerstand: 0.0005ohm
Battery: 2-4S Lipo / 4-12Cells NiMH
BEC Output: 6.1V / 3A (Switch mode)
Afmeting / Gewicht: 51,5 x 68,5 x 38,5 mm / 84g
